The Industry Standard for Corrugated & Paperboard Waste Reduction

BloApCo® 3-Shaft Pierce & Tear Shredders

Corrugated plants generate a unique waste stream. Large sheets, bulky setup waste, die cuts, heavy-wall cores, slab waste, roll wrap, and knocked-down boxes require a shredding solution that can handle volume without generating excessive dust, noise, or maintenance. BloApCo’s 3-Shaft Pierce & Tear Shredders were engineered specifically for these challenges

Why 3-Shaft Shredders Excel in Corrugated Applications

Designed for long, bulky materials, the multi-shaft design grips, pulls, and tears material apart rather than grinding it. The result is reliable processing of corrugated sheets, die cuts, carton scrap, roll slab waste, roll wrap, paperboard trim, paper cores, setup boxes, and broken bales. The low-speed Pierce & Tear process minimizes dust, noise, and energy consumption while producing material ideally suited for pneumatic conveying.

Maximize Productivity and Profits

With thousands of shredders installed, BloApCo’s best-selling 3-shaft Pierce-and-Tear shredders are engineered for applications requiring demanding material reduction, reliable continuous-duty operation, superior throughput and performance, and unrivaled low cost of ownership.

Configured Around the Application

Integrated System Configurations

Systems may include pneumatic conveying, balers, conveyors, trim handling systems, and centralized waste collection.

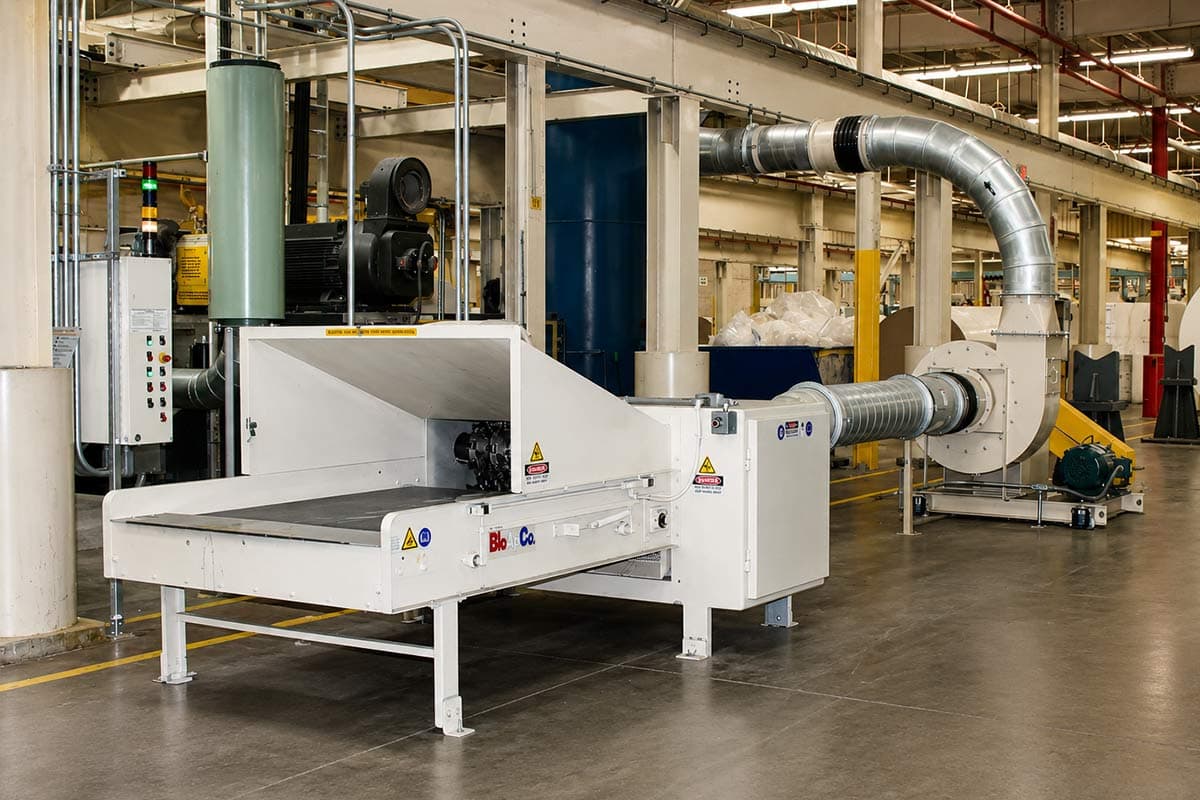

Horizontal Feed Configuration

The most common arrangement for corrugated converters and box plants. A horizontal feed conveyor safely transports sheets, cores, and scrap into the shredding chamber while supporting continuous operation and integration with pneumatic conveying systems.

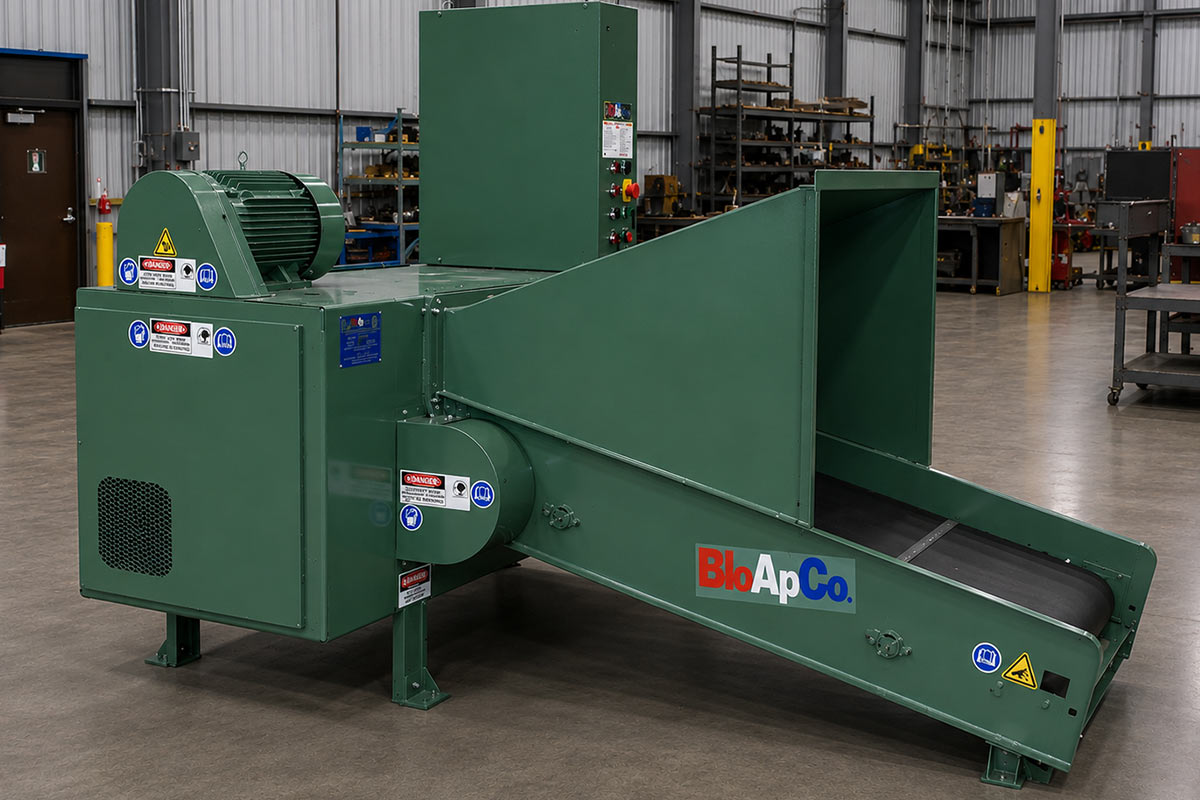

Sweep Plate Configuration

Designed for facilities that regularly sweep die cuts, trim waste, broken bales, and floor scrap. The sweep plate allows operators to push material directly onto the conveyor, reducing labor and improving housekeeping.

Air Floor Sweep Configuration

An integrated air floor sweep continuously removes loose scrap from production and baler areas, improving safety while reducing manual cleanup requirements.

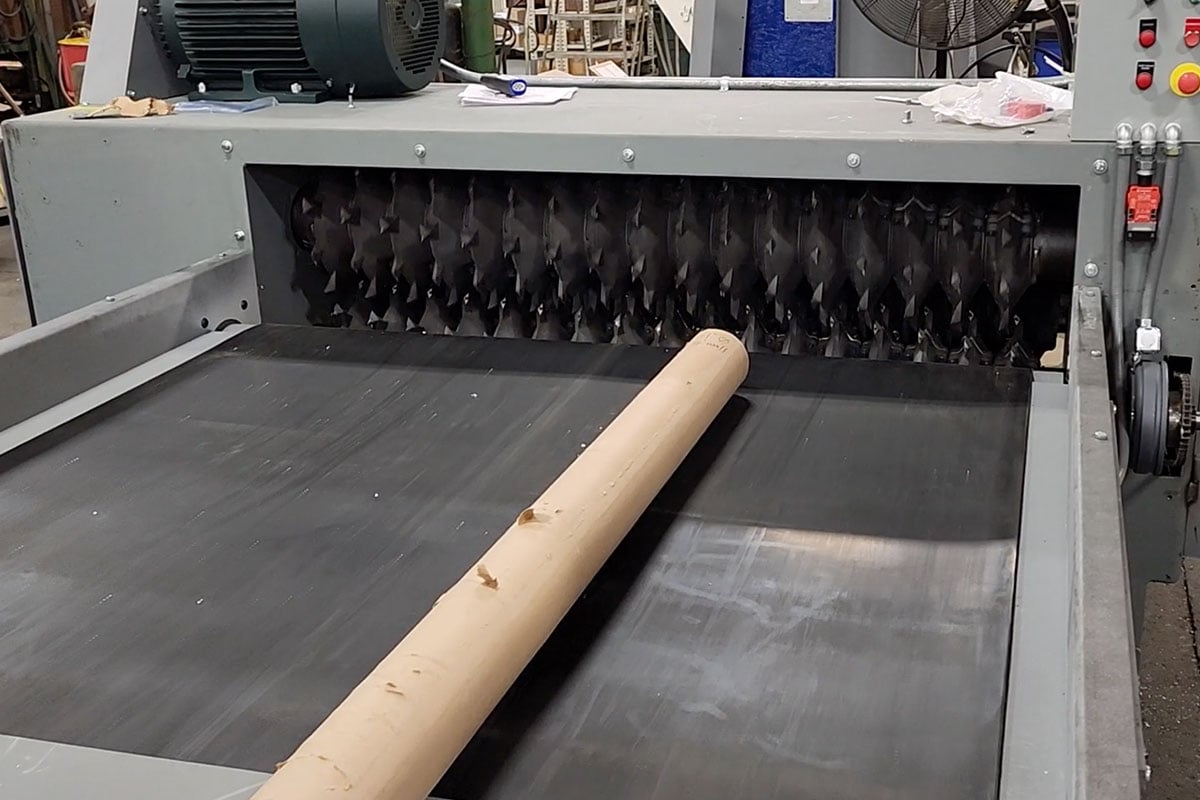

Expanded Core Shredding Capability

Engineered for facilities processing large volumes of paper cores. Operators can place cores anywhere on the conveyor, improving productivity and simplifying material handling.

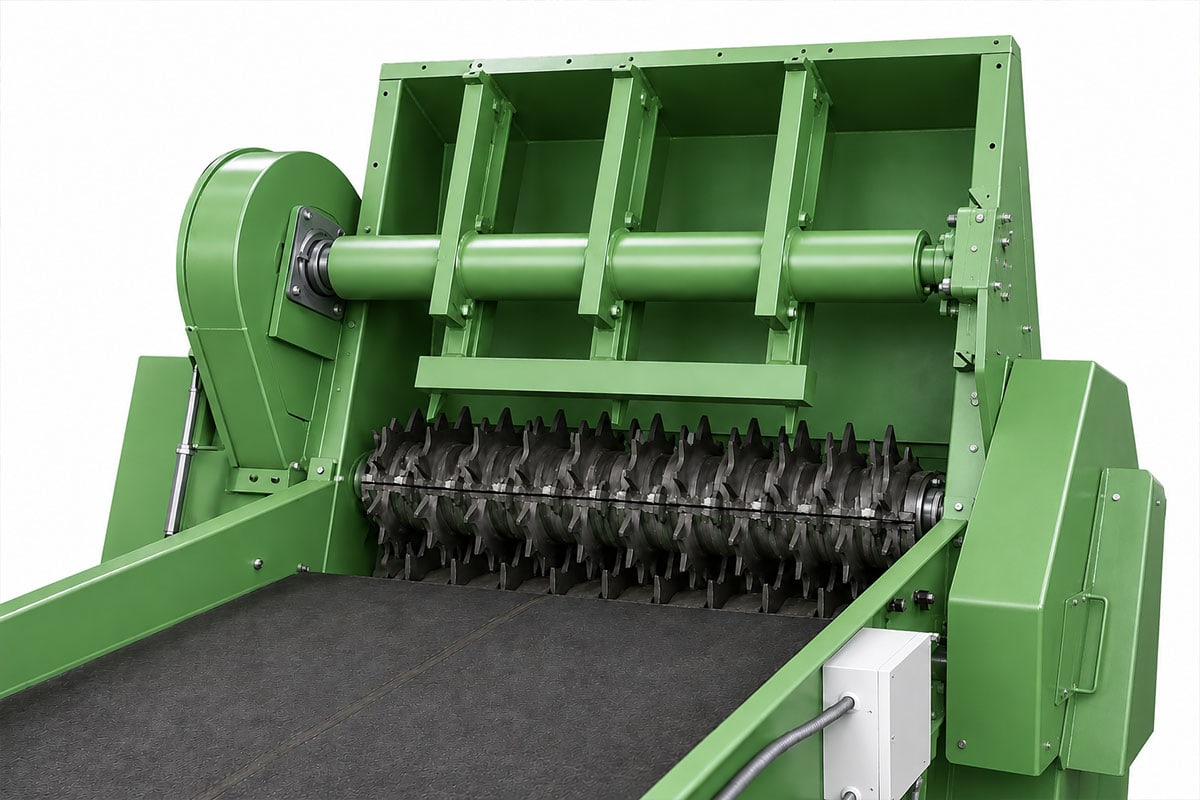

Box Crusher Configuration

An integrated box crusher automatically collapses upright corrugated containers before shredding. This eliminates manual box breakdown and significantly increases throughput.

Core Stripper Integration

Integrated unwind stands and feed rolls automatically remove paper from cores and feed both materials into the shredder. This configuration is particularly effective in corrugated plants, paper mills, and converting operations.

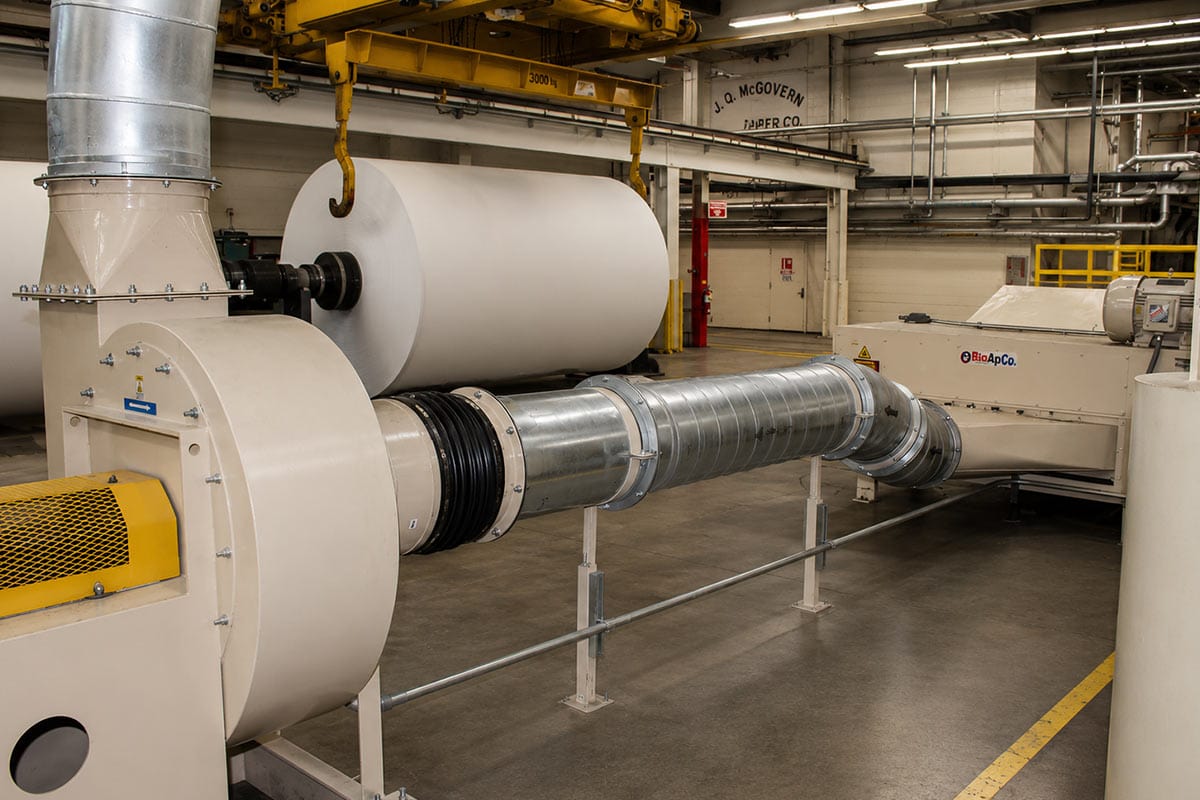

Material Handling Fan Integration

Close-coupled BloApCo material handling fans rapidly evacuate shredded material from the shredding chamber, increasing throughput and improving performance on bulky corrugated waste, slab waste, and heavy-wall cores.

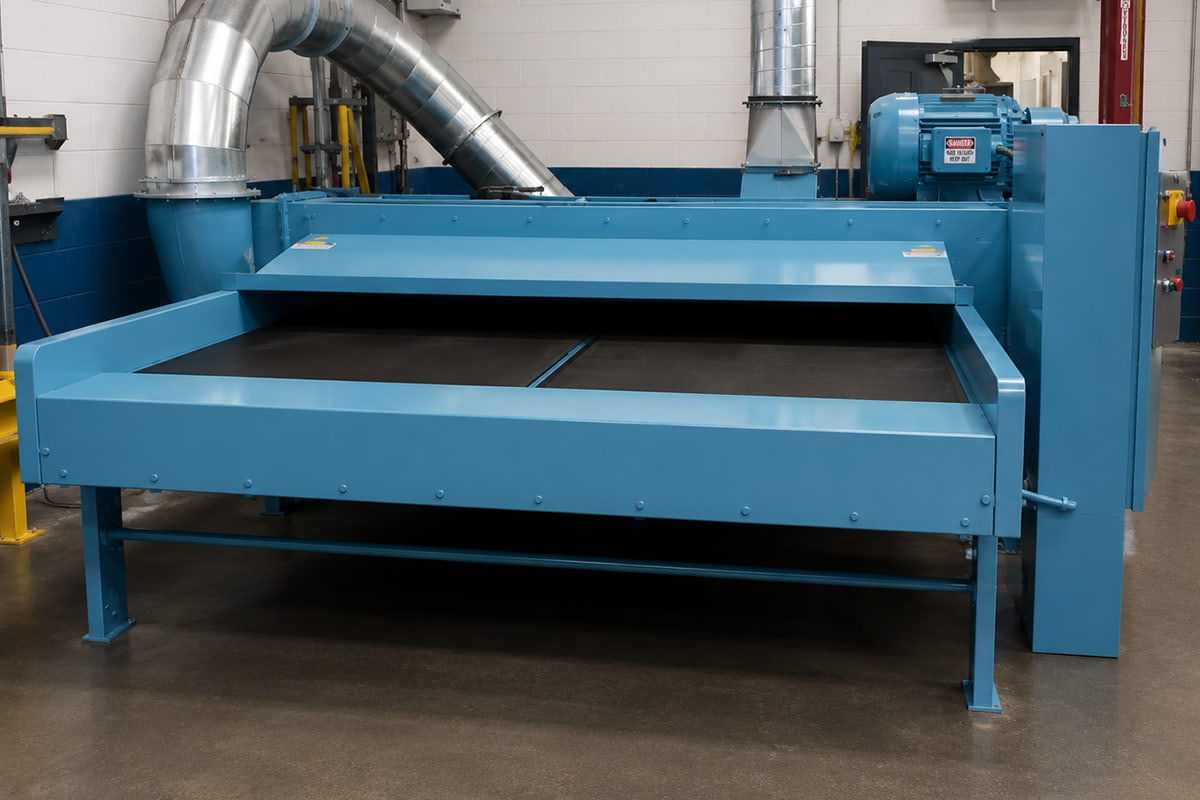

SUPER-WIDE® Configurations

Available in widths up to 120 inches and beyond, SUPER-WIDE® shredders process full-width corrugated sheets without folding or preprocessing. These systems are ideal for high-volume corrugators and automatic core stripping operations.

Built for Corrugated. Engineered for Throughput.

While many shredders can process corrugated waste, BloApCo 3-Shaft Pierce & Tear Shredders were specifically engineered around the challenges faced by corrugated converters, box plants, and paperboard manufacturers.
