High-Speed Granulators
The ideal secondary granulator for a wide range of materials and precision size reduction.
High-speed granulators are designed for efficient secondary size reduction across a wide array of materials, delivering consistent and precise output.
A diverse range of models is available to meet varying application and throughput requirements, from small- and medium-duty machines, starting at 15 HP (1GM series) to super-duty, high-capacity equipment with motors up to 250 HP (1GSH series).
These machines are suitable for a wide range of applications, including pipes, film, rubber, cables, and hard or thick materials requiring fine particle output. Depending on specific requirements, the machines can be equipped with screen mesh sizes ranging from 2 to 60 mm, allowing precise control over final particle size.

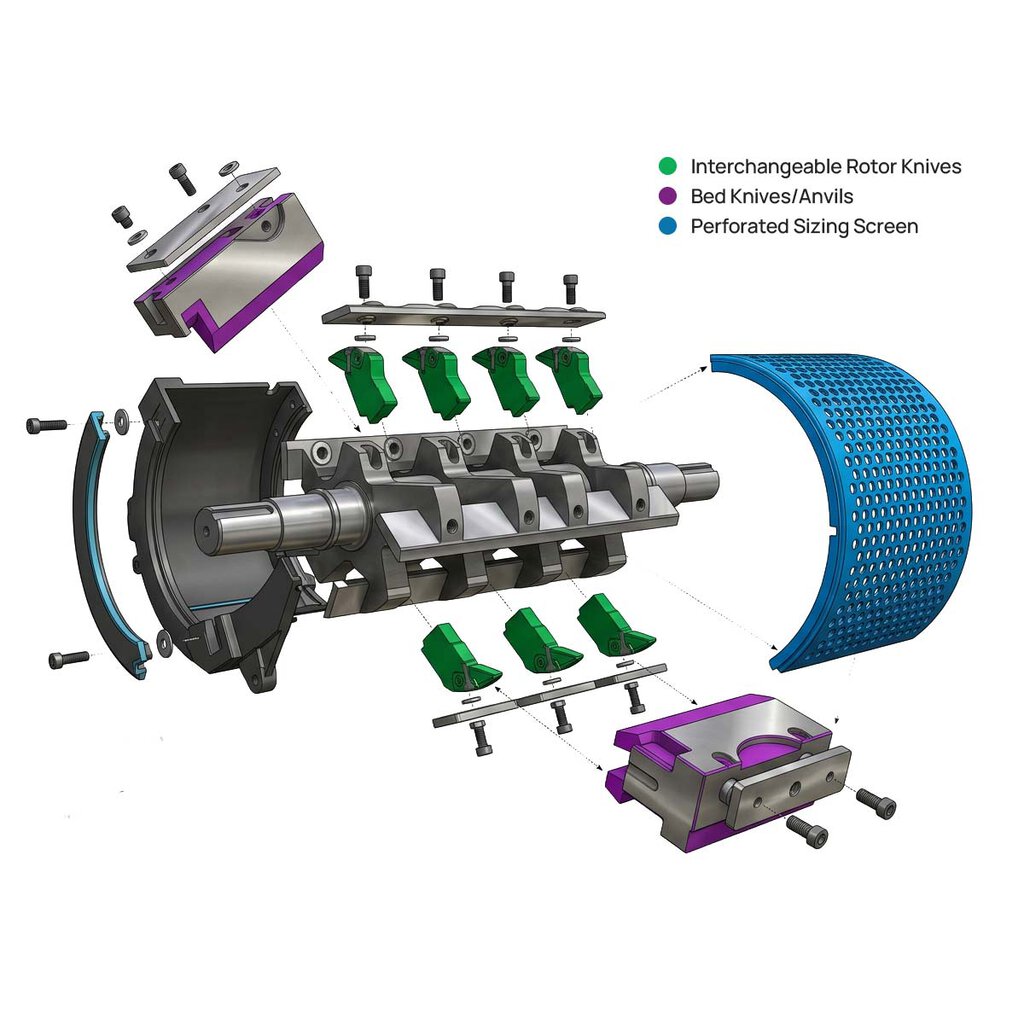

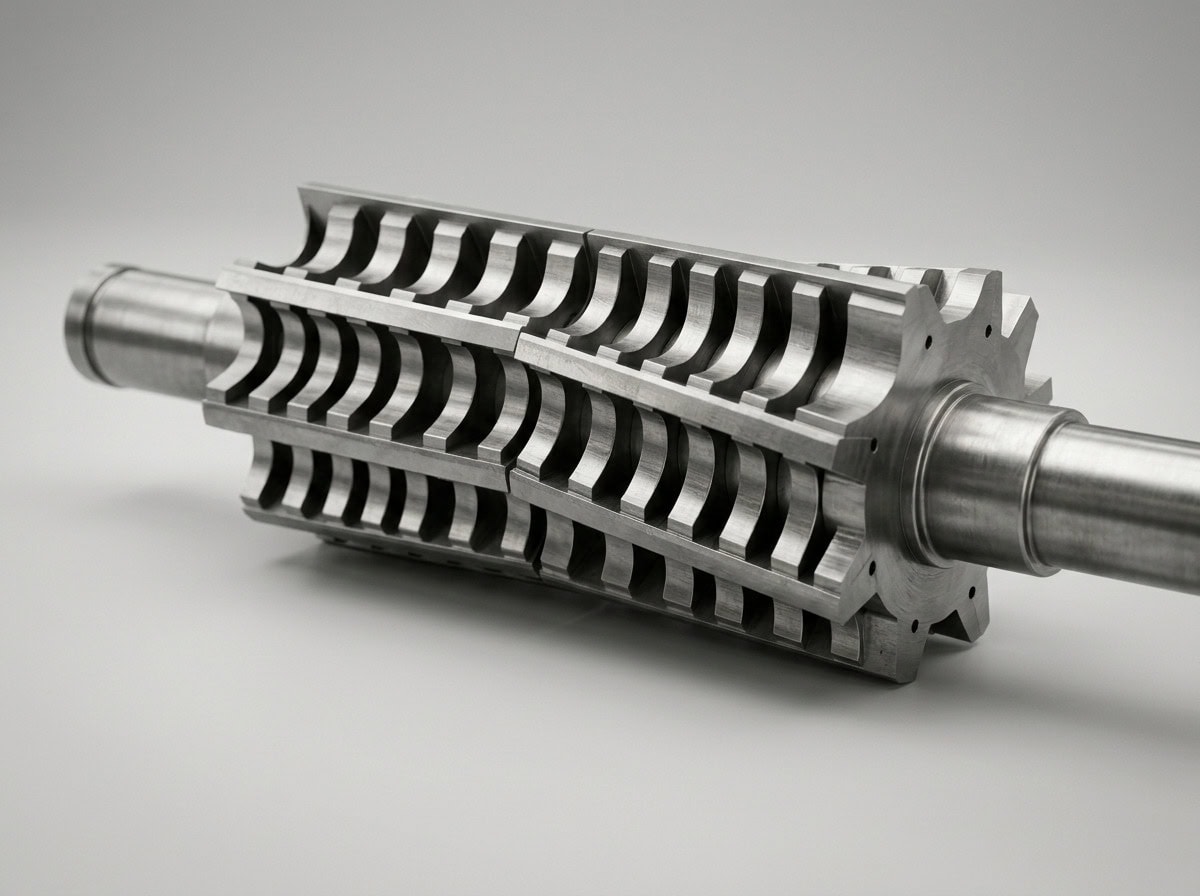

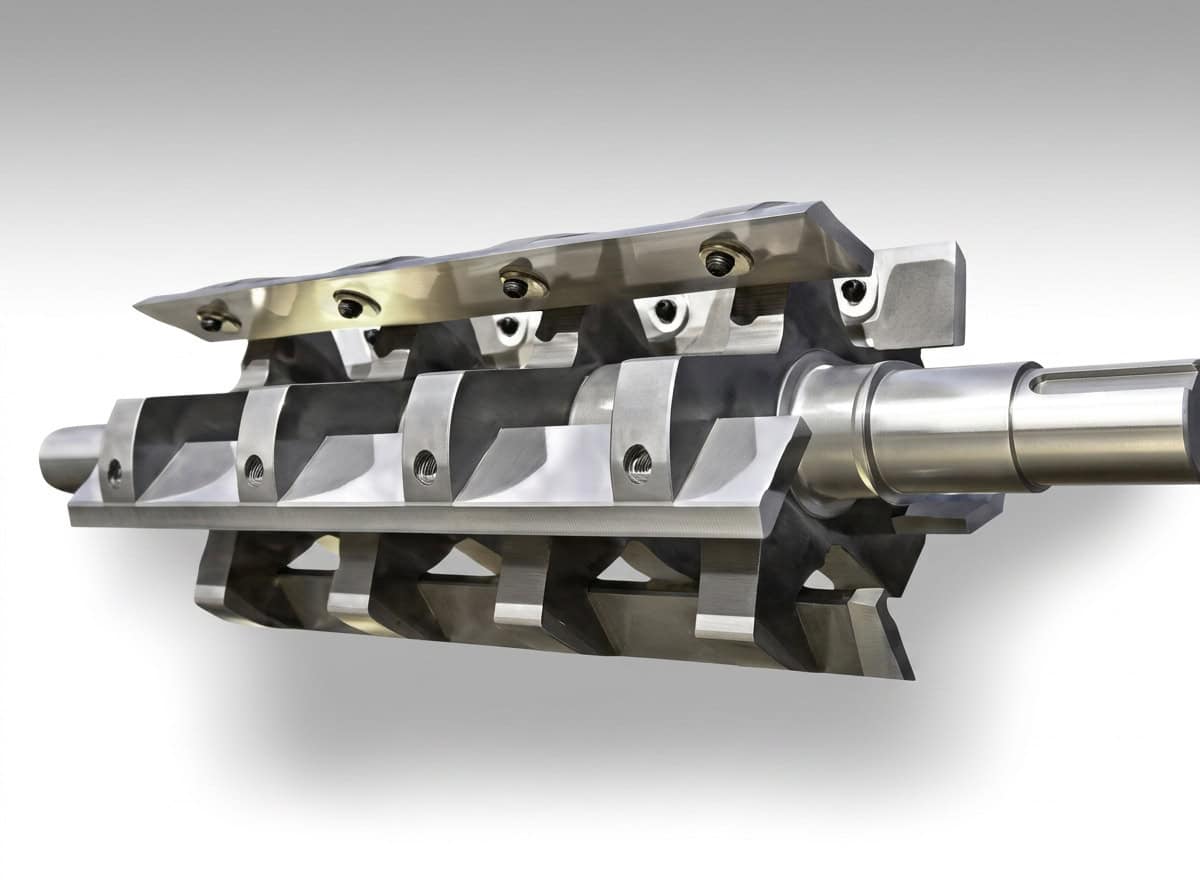

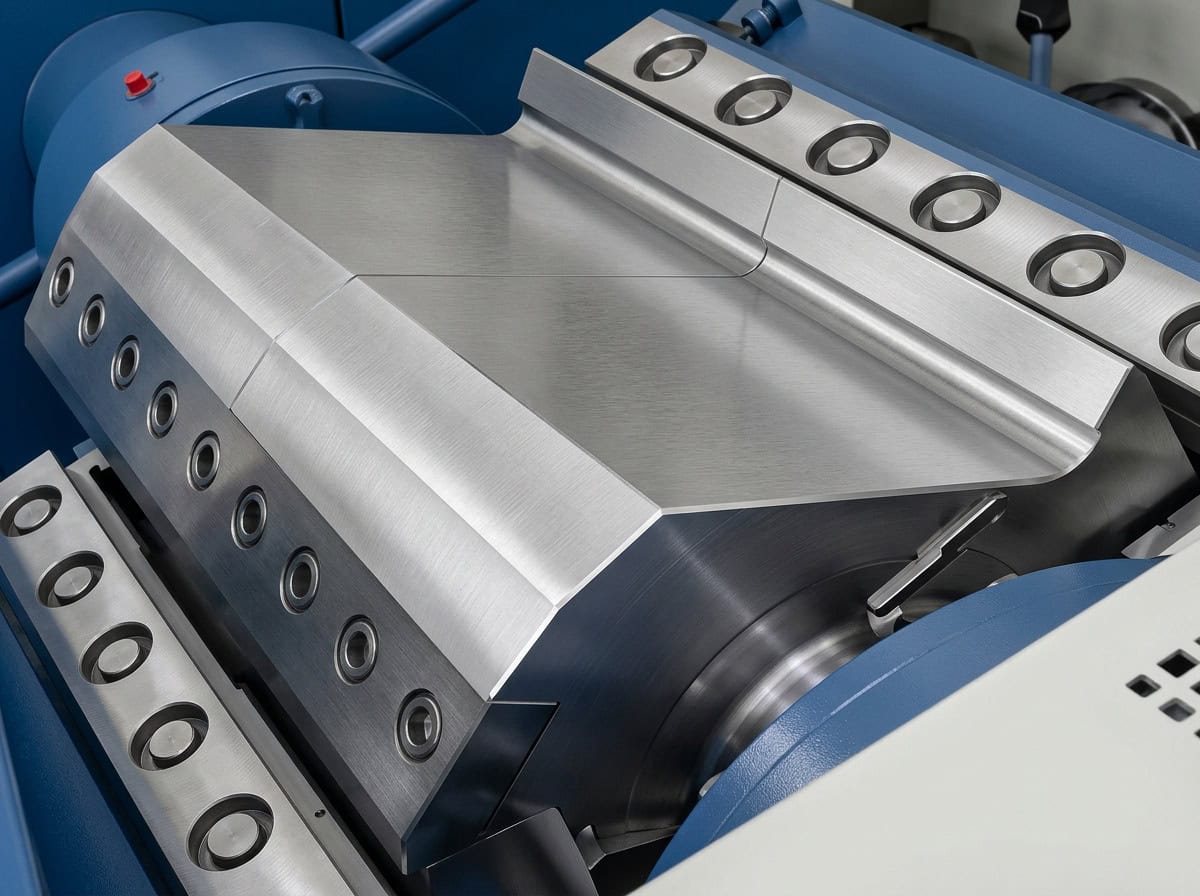

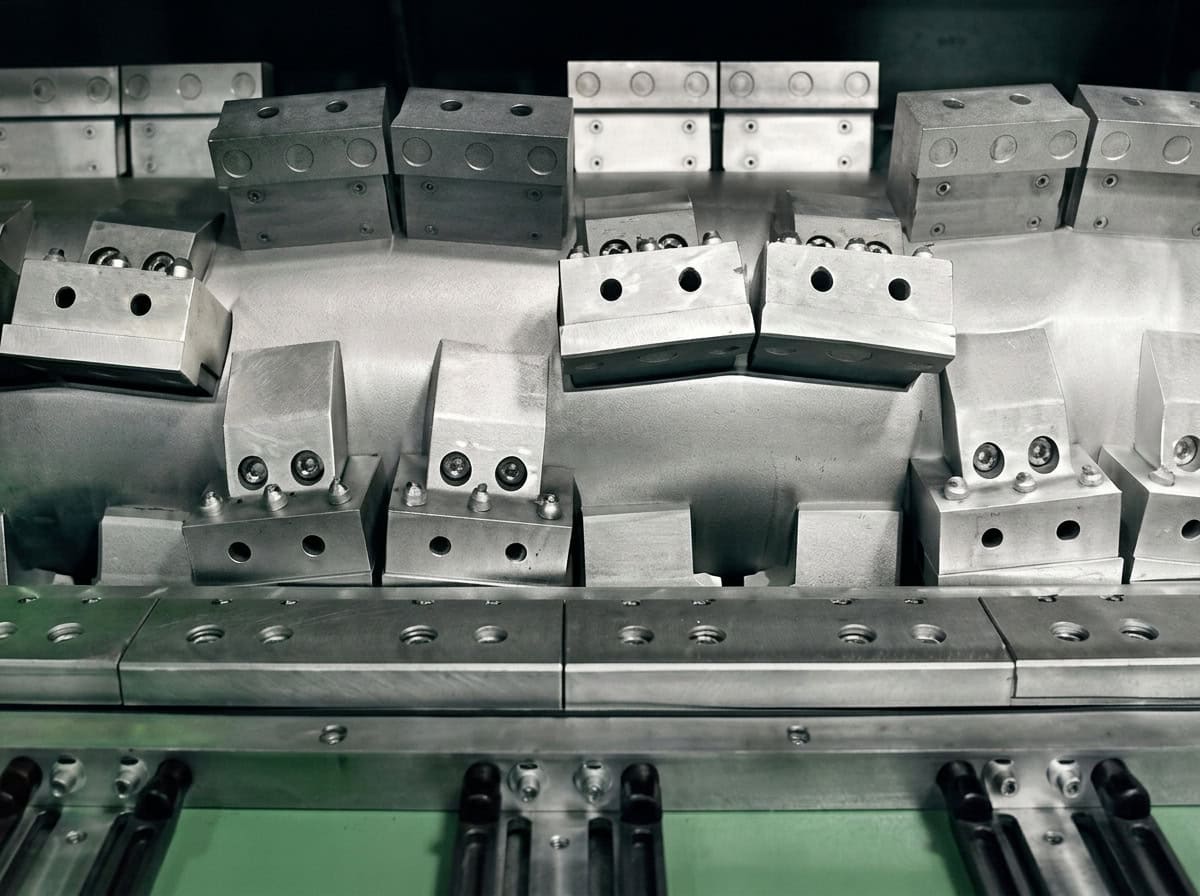

Multiple rotor configurations are available at the time of equipment selection to achieve optimal performance. High-speed granulators can be equipped with standard or custom BloApCo control panels. All equipment includes a 1-year warranty.
Ideal For:
- Plastic & Film
- Pipes & Cables
- Rubber
- RDF & Hard Materials
- Secondary Size Reduction
Versatile
Engineered for a wide range of materials and demanding application
Durable
Heavy-duty construction built for continuous, reliable operation
Configurable
Multiple rotor and drive configurations to match your needs
Advanced Control
Standard and custom BloApCo control panels for optimal operation
Peace of Mind
Added confidence with one year of warranty protection
Why Choose the Titan Series?
Designed for demanding recycling environments, BloApCo systems offer expanded material capabilities for plastics, wood, metal, WEEE, and more. With multiple sizes and throughput capacities available, our equipment can be tailored to your specific application—all backed by BloApCo’s trusted engineering, service, and support.
Technical Specifications
| Machine Model | 1GL Starting at | 1GM Starting at | 1GH Starting at | 1GSH Starting at |
|---|---|---|---|---|
| Estimated Capacity (T/Hr)* | 1–3 | 1–8 | 4–10 | 12–20 |
| L × W × H – Length × Width × Height (in) | 45 × 37 × 81 | 54 × 53 × 102 | 84 × 84 × 142 | 95 × 92 × 172 |
| C – Chamber (in) | 13 | 17 | 29 | 33 |
| D – Chamber (in) | 22 | 22 | 40 | 50 |
| E – Discharge Port Height (in) | 60 | 74 | 103 | 128 |
| Screen Mesh (in)** | 0.2–2.5 | 0.2–2.5 | 0.2–2.5 | 0.2–2.5 |
| Shaft Speed (RPM) | 580 | 580 | 462 | 462 |
| Rotor Knives (pc)*** | 3 × 2 | 3 × 2 | 5 × 2 | 5 × 2 |
| Counter Knives (pc) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 3 |
| Motor Power**** HP (kW) | 20 (15) | 30 (22) | 74 (55) | 121 (90) |
| Gross Weight (lbs) | 2,095 | 3,308 | 9,261 | 16,868 |
*Dependent on materials and feeding applications.
**Screen size can be selected from 0.2 in (5 mm) to 2.5 in (60 mm) or larger. Standard screen size is 0.5 in (12 mm).
***Rotor sizes, designs, and number of knives are based on the application and can vary.
****Higher power rates are available on request. Overall dimensions are for illustration purposes. BloApCo will engineer and size the equipment based on the application and requirements.
